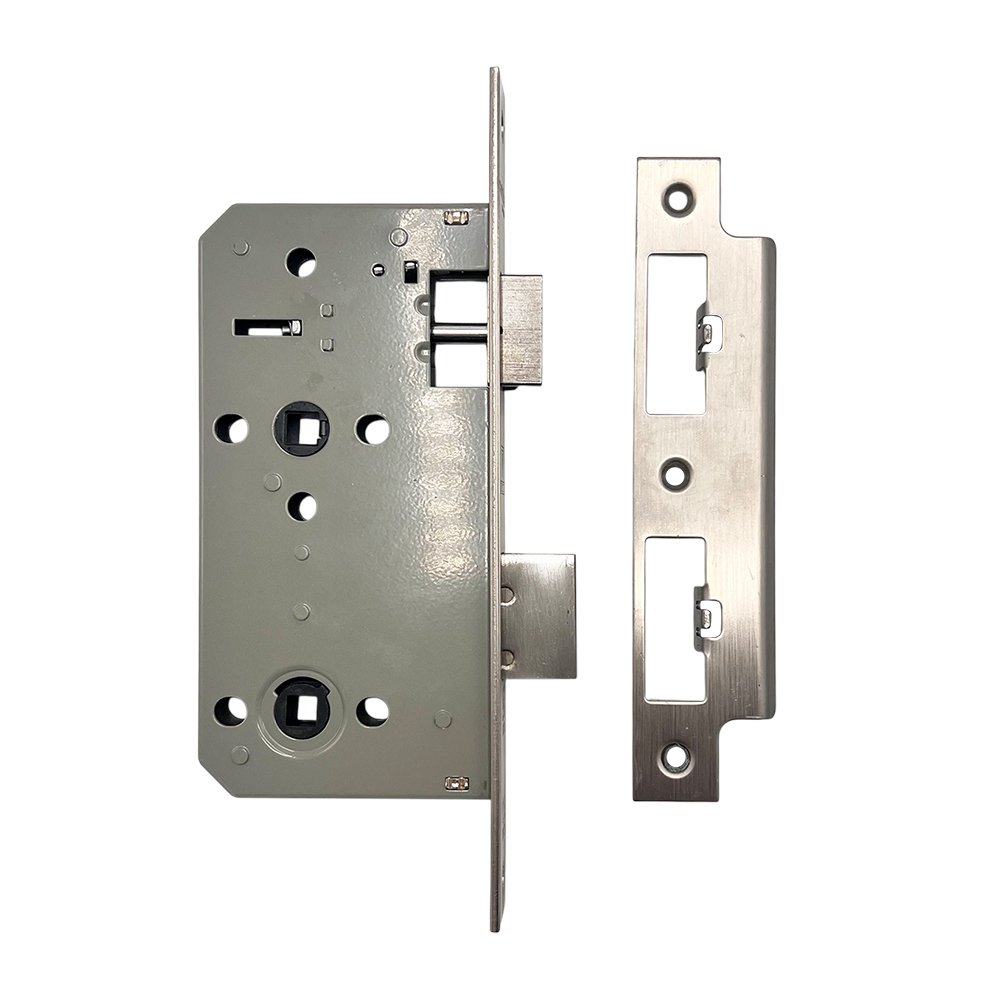

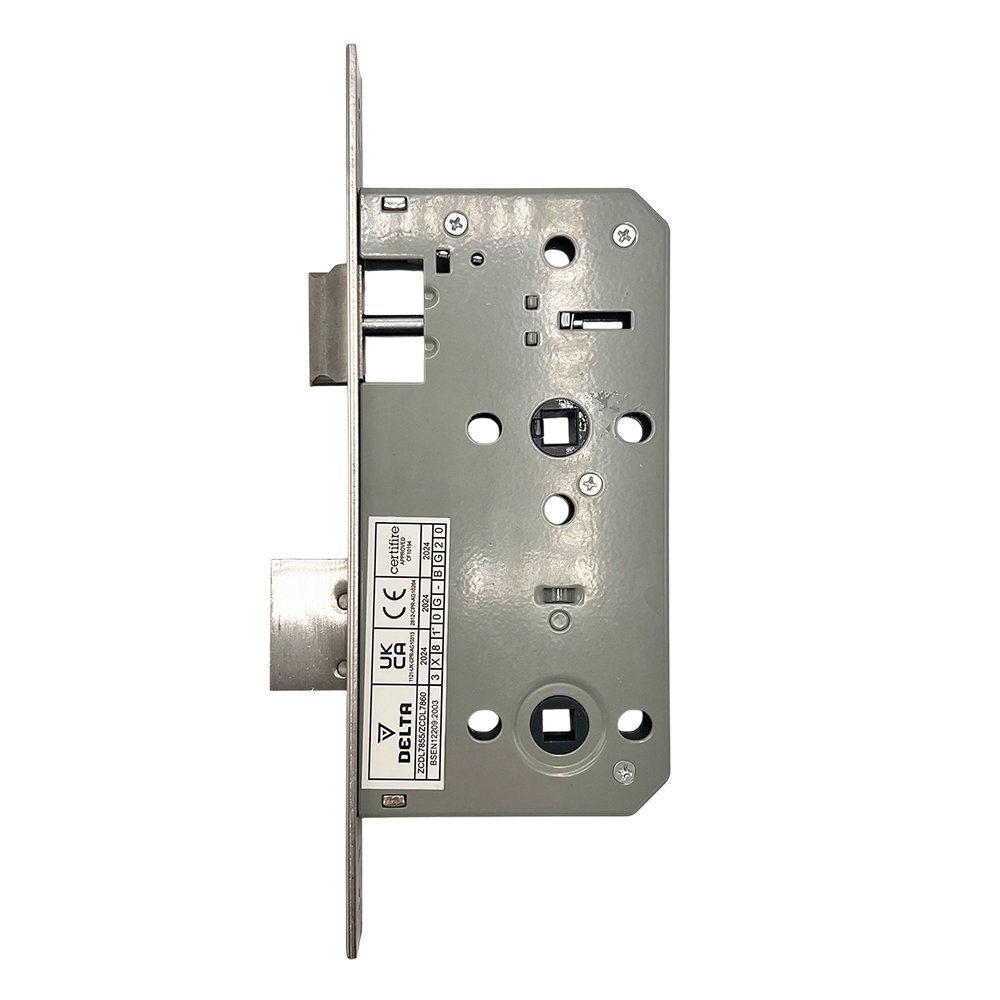

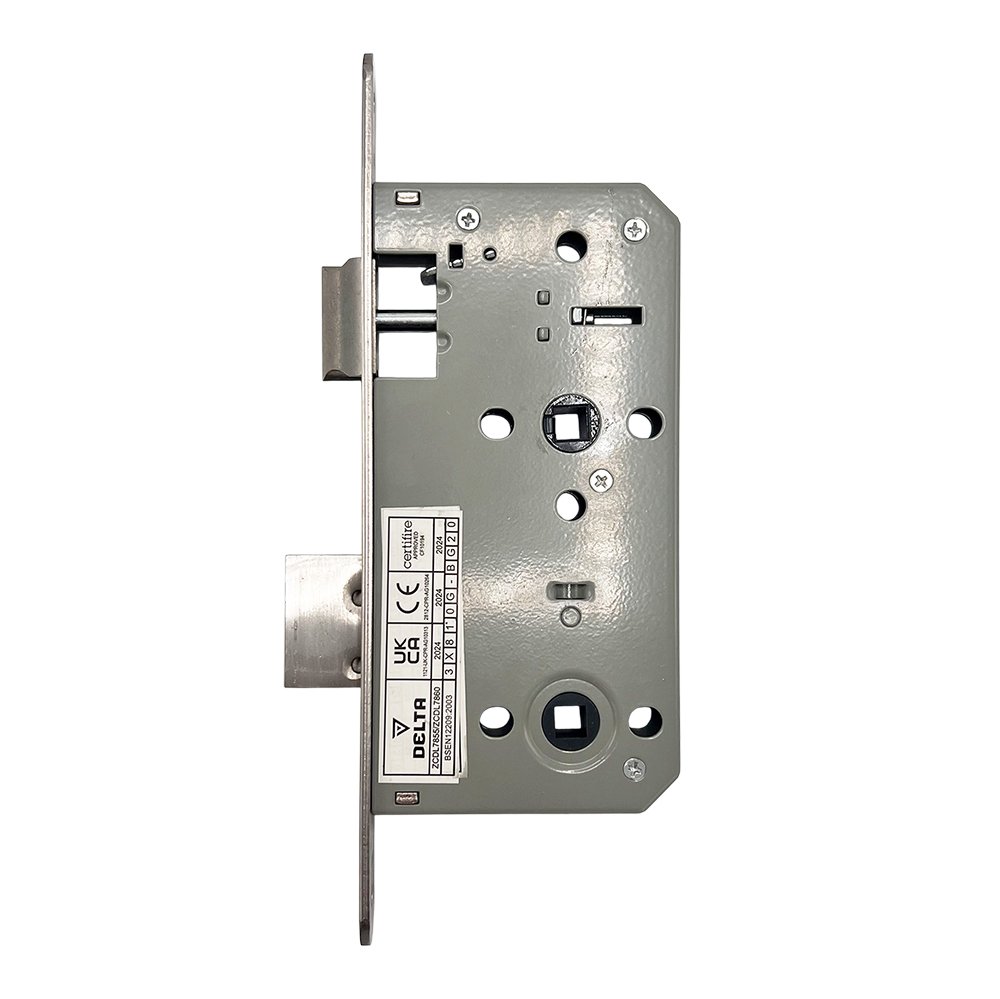

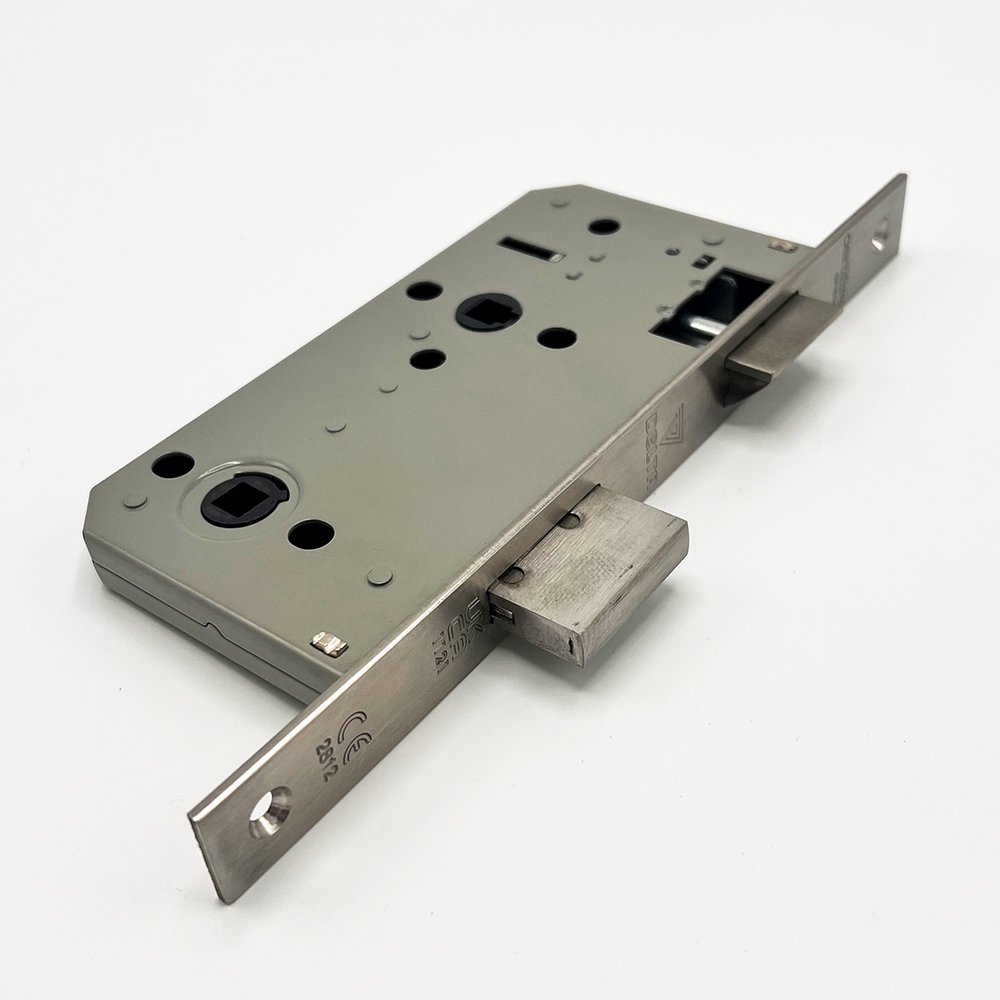

Zoo DIN Bathroom Lock Case is a DIN standard bathroom lock.

rn

A DIN lock is a type of lock that conforms to DIN standardsu2014a set of German engineering specifications established by the Deutsches Institut fu00fcr Normung (DIN). These standards ensure uniformity in size and fitting, making DIN mortice locks compatible across a wide range of doors and hardware.

rn

Product Features

rn

rn
• Available in 55mm or 60mm backset

rn

• Stainless Steel single fixed forend, 22mm width

rn

• Stainless Steel easily reversible latchbolt

rn

• Stainless Steel double throw dead bolt, 20mm

rn

• 8mm bathroom follower with optional supplied 5mm adaptor

rn

• Anti-rattle strike

rn

• Grip tight follower

rn

• 0.8mm (30 min) and 1mm (60 min) Graphite intumescent kit for use on fire rated doors supplied separately (see below table for details)

rn

rn

rn

Performance Testing

rn

Successfully tested in accordance with the requirements of BS EN12209: 2003

rn

3 X 8 1 0 G – B G 2 0

rn

rn

Fire Testing

rn

Successfully fire tested in accordance with the requirements of BS EN1634-1, suitable for use on timber fire doors up to 120 minutes and steel fire doors up to 240 minutes.

rn

rn

Certfication

rn

rn
• CE marked (Certificate AG10266)

rn

• UKCA marked (Certificate AG10315)

rn

• CERTIFIRE approved (Certificate CF10194)

rn
